Where to Buy Dog Food Bagging Machines(vffs)?

Dog food packaging is no longer just about putting kibble into a bag. For modern pet food brands, packaging must protect product freshness, keep pellets from breaking, support attractive branding, and match the right production speed and bag format. That is why choosing the right dog food bagging machine is one of the most important decisions in a pet food production line.

When people search for the best solution, they often compare three main packaging methods: fully automatic rotary pouch packaging machines for premium pre-made bags, VFFS machines for efficient roll-film packaging, and heavy-duty bagging systems for large-format packs. Among them, VFFS packaging is especially popular for mass production because it offers a strong balance of speed, efficiency, and cost control.

This article explains what a dog food packaging machine is, how a dog food bagging production line works, how a vertical form fill seal machine operates, how it compares with pre-made bag packaging machines, and where to buy the right equipment. It also explains why a Z-type bucket elevator is so useful in dog food VFFS lines.

What Is a Dog Food Packaging Machine?

A dog food packaging machine is a type of automated equipment designed to measure, fill, seal, and discharge dog food into retail or wholesale bags. Depending on the product and packaging style, it may handle small consumer bags, medium family packs, or large commercial sacks.

Dog food is usually an extruded product, which means it is lightweight, brittle, and easy to crush if handled roughly. In many cases, it also contains sprayed fats, flavor coatings, and palatability enhancers. These characteristics make packaging more demanding than ordinary dry goods.

A good dog food packaging machine should therefore do more than simply fill a bag. It should help maintain product integrity, reduce fines and breakage, provide stable weighing accuracy, and preserve the appearance of the final package. For this reason, many producers choose a combination of a multi-head weigher, a VFFS machine, and a lifting system such as a Z-type bucket elevator.

What Is a Dog Food Bagging Production Line?

A dog food bagging production line is a complete integrated system that moves product from the feeding stage to the final packaged bag. In a modern setup, this line usually includes several connected units working together.

A standard line may include product conveying, weighing, bag feeding or film forming, filling, sealing, printing, and output handling. For high-quality extrusion-based pet food, the line often starts with a gentle conveying system to protect the kibble and ends with an automatic packaging machine designed for the chosen bag style.

For premium dog food in smaller to medium packs, a typical production line may look like this: Z-type bucket elevator, multi-head weigher, vertical form fill seal machine, and finished bag conveyor. For pre-made bags, the line may instead use a rotary pouch packaging machine with the same feeding and weighing section upstream.

For larger bags, such as 10 kg to 25 kg household or kennel packs, the line usually requires a heavy-duty weighing and bagging system. The equipment selection depends on package weight, product flow characteristics, desired speed, labor cost, and bag design.

In short, a dog food bagging production line is not a single machine. It is a coordinated system that turns loose product into retail-ready or wholesale-ready packages with stable quality and repeatable output.

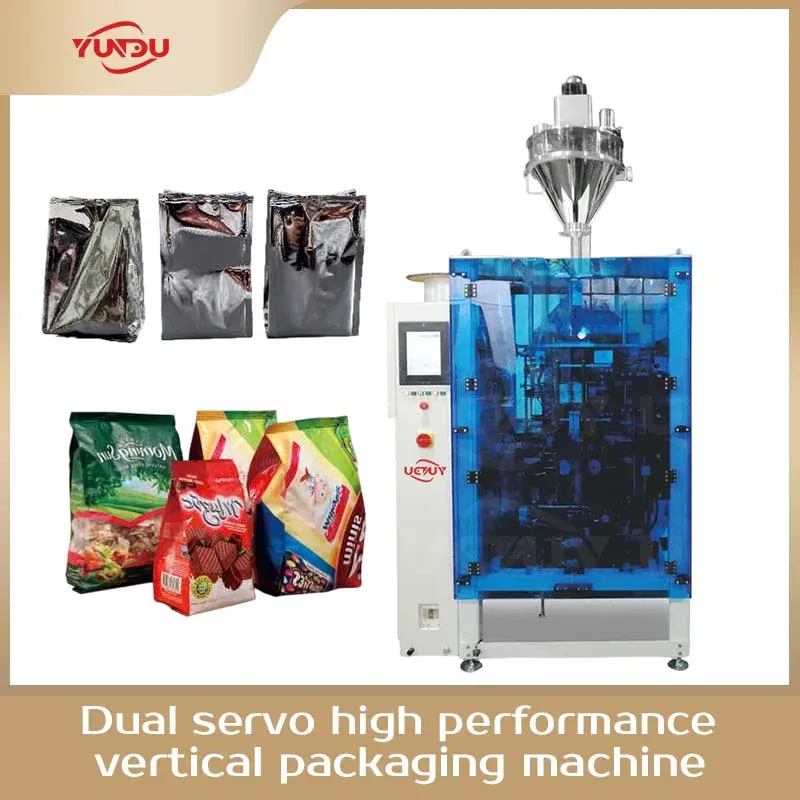

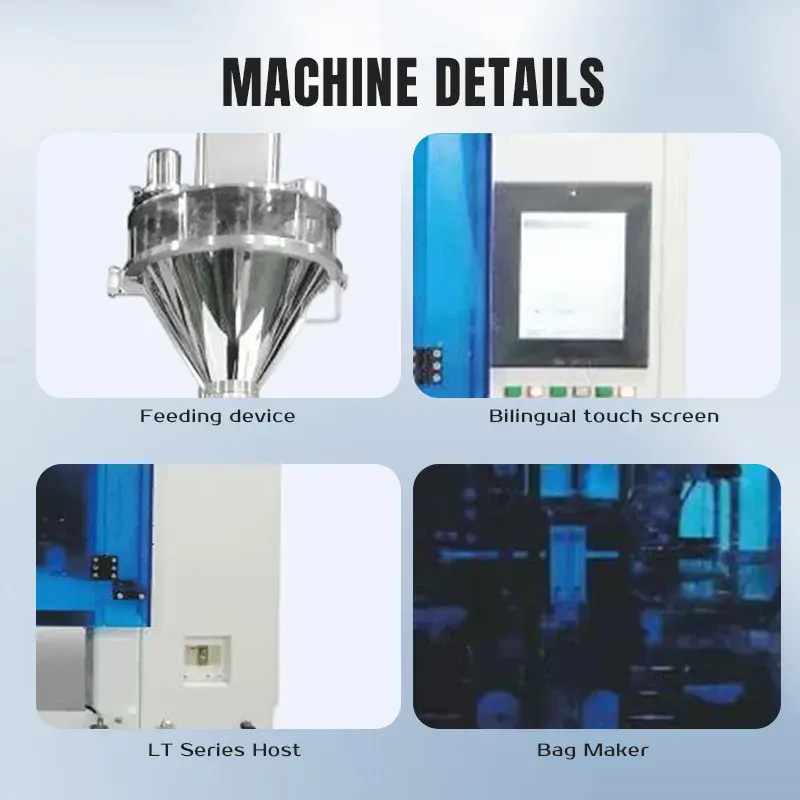

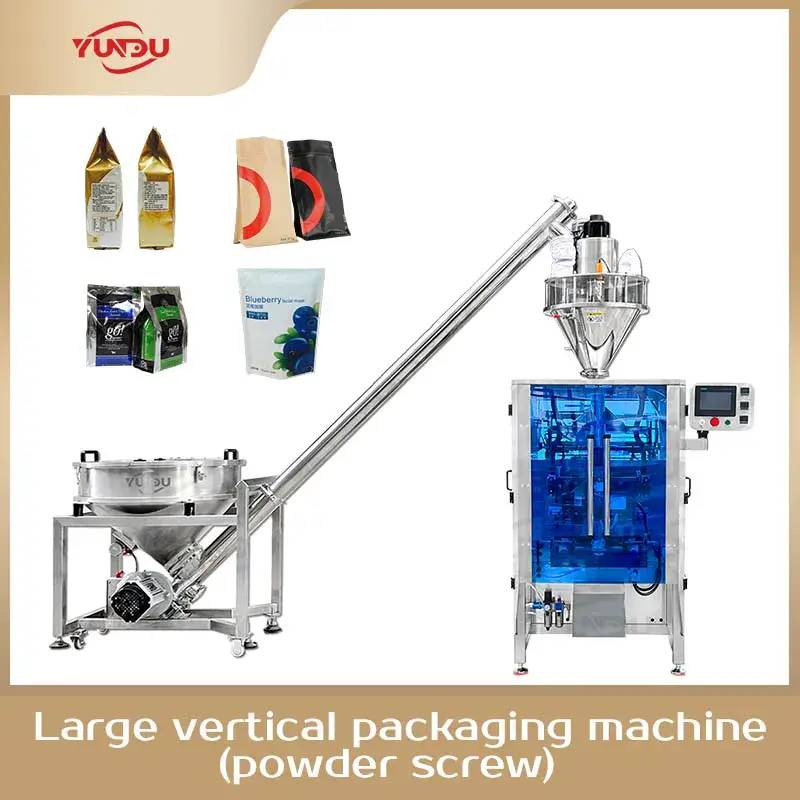

Working Principles of Vertical Dog Food Packaging Machines

A vertical form fill seal machine is one of the most common choices for dog food VFFS packaging. It works by forming the bag from a roll of packaging film, filling it with weighed product, and sealing it vertically in one continuous process.

The working principle is straightforward but highly efficient. First, packaging film is pulled down from a roll. The machine forms the film into a tubular shape around a forming collar. Then the vertical sealing unit creates the back seal or fin seal. Next, the product drops into the formed tube from the weighing section above. Finally, the horizontal sealing jaws create the top and bottom seals, cutting the bag apart to complete one package.

In a dog food line, the VFFS machine is usually paired with a multi-head weigher. The weigher measures the target weight with high accuracy, then releases the product into the packaging tube at the correct moment. This combination is ideal for granules, pellets, and other free-flowing products.

The greatest advantages of VFFS packaging are speed, efficiency, and lower packaging material cost. Since the machine forms bags from roll film, there is no need to purchase pre-made bags. This makes it a strong option for brands that care about production volume and cost control.

For dog food, the machine can produce pillow bags, gusseted bags, and other flexible formats depending on the film structure and sealing design. With the right configuration, a dog food VFFS line can run continuously and maintain consistent packaging quality for long production shifts.

Vertical Packaging Machines vs. Pre-Made Bag Packaging Machines

When choosing between a vertical form fill seal machine and a pre-made bag packaging machine, the main decision comes down to brand positioning, production cost, and bag appearance.

Pre-made bag packaging machines are widely used for premium dog food brands. They handle finished bags such as stand-up pouches, flat-bottom bags, and zipper bags. Because the bag is already formed before filling, the final package often looks more polished and premium. This makes pre-made bag systems ideal for brands that emphasize shelf appeal, convenience, and product image.

A rotary pouch packaging machine typically completes bag picking, opening, filling, sealing, and discharge automatically. It is an excellent choice when the market expects elegant packaging and consumer-friendly features such as re-sealable zippers.

By contrast, VFFS packaging is better when the focus is on speed and economics. Since bags are formed from roll film, the packaging material cost is usually lower than using pre-made bags. The machine is also well suited to large-volume, high-frequency production. For many manufacturers, this is the best balance between investment and output.

A simple way to compare the two is this:

Vertical packaging machines are best when you want lower material costs, high speed, and efficient production of pillow bags or gusseted bags. Pre-made bag machines are best when you want premium presentation, special bag shapes, and retail shelf impact.

For premium dog food in 0.5 kg to 5 kg packs, both options may work. For cost-effective mass-market production, dog food VFFS often has the advantage. For luxury or highly differentiated products, pre-made bag packaging may be more suitable.

Where to Buy Dog Food Bagging Machines?

The best place to buy a dog food bagging machine is from a manufacturer that understands both the product and the packaging process. Dog food is not a generic material, so the right supplier should know how to handle extruded pellets, oily coatings, anti-breakage conveying, accurate weighing, and the different bag styles used in pet food packaging.

When evaluating suppliers, look for these qualities.

First, check whether the manufacturer can provide complete line solutions, not just a single machine. A reliable supplier should be able to recommend the correct combination of Z-type bucket elevator, weighing system, and packaging equipment based on your target bag weight and output.

Second, make sure the machines support the packaging format you need. If you want roll-film bags, the supplier should offer a stable vertical form fill seal machine with the correct sealing and film handling structure. If you need premium zipper pouches, they should also be able to supply a rotary pouch system.

Third, evaluate material and hygiene standards. Since dog food can contain oils and fine dust, product-contact parts should be made from food-grade stainless steel, usually 304 stainless steel as standard. Surfaces should be easy to clean and resistant to sticking.Excellent suppliers like Yundu tend to excel in after-sales support, offering a one-year warranty.

Fourth, ask about after-sales support, spare parts, installation, and operator training. Packaging machines are long-term production assets, so service matters as much as the machine itself.

Finally, compare capacity with your actual market plan. Buying too small creates bottlenecks, while buying too large raises unnecessary investment. A good supplier will recommend the right line based on package weight, speed, bag type, and future expansion plans.

If you are searching for a practical, production-oriented solution, it is often best to buy from a professional packaging machinery manufacturer that can customize the line for your dog food products instead of offering a one-size-fits-all machine.

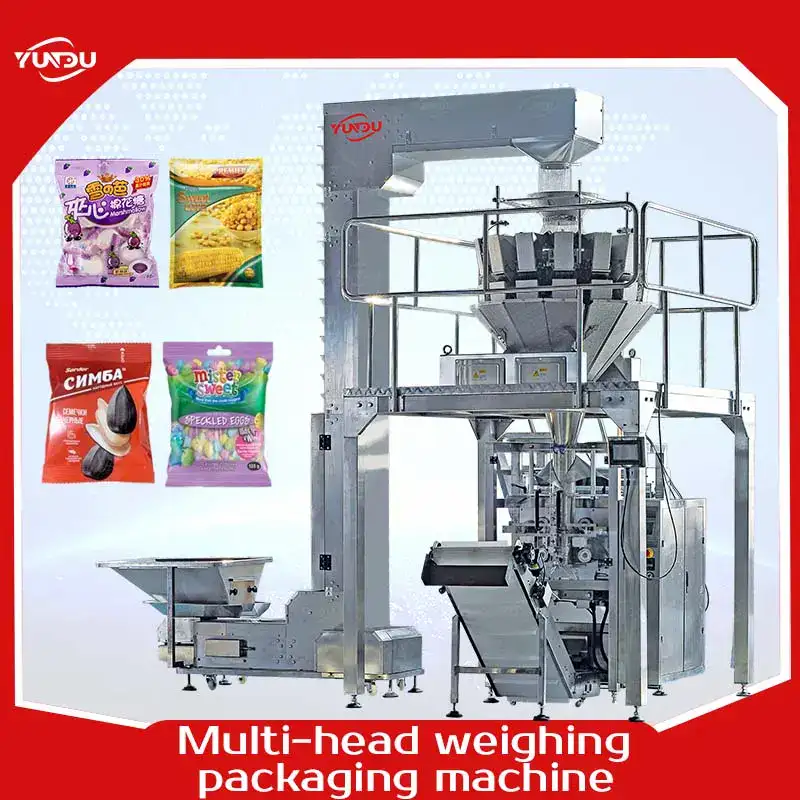

How Do Z-Type Bucket Elevators Benefit Vertical Packaging Machines?

For dog food VFFS lines, the Z-type bucket elevator is one of the most important supporting machines. It lifts product from the feeding point to the top of the packaging system and delivers it gently into the weighing hopper.

Dog food pellets are easy to damage if they are transported roughly. A Z-type bucket elevator reduces breakage because it moves the material in a controlled, gentle, and continuous way. This is especially important for premium dog food, where appearance and pellet integrity matter.

Another major benefit is reduced fines. When pellets chip or crush, they create dust and crumbs, which can affect both product quality and package appearance. A Z-type elevator minimizes this problem by avoiding harsh mechanical impact.

The design is also space-saving. Many factories do not have much floor area, so vertical lifting helps use the available space more efficiently. In a full VFFS packaging line, this is especially useful because the elevator can feed product upward while the packaging machine occupies a relatively compact footprint.

In addition, the Z-type bucket elevator helps keep the line stable and automated. It continuously supplies product to the weighing system, reducing manual handling and labor dependence. This makes the entire packaging process smoother and more consistent.

For these reasons, the Z-type bucket elevator is not just an accessory. In many dog food packaging lines, it is a key part of achieving high-quality, reliable production.

Choosing the Right Dog Food Bagging Solution

The right dog food bagging machine depends on your target market and packaging strategy.

If you produce premium dog food and want attractive zipper or flat-bottom bags, a pre-made bag system may be the best fit. If you focus on cost-effective, high-volume production, then a vertical form fill seal machine is often the smarter choice. If your product is sold in large bags, a heavy-duty system will be necessary.

For many manufacturers, the most practical solution is a dog food VFFS line with a multi-head weigher and Z-type bucket elevator. This setup gives excellent speed, stable weighing, reduced product damage, and lower packaging cost. It is especially suitable for extruded pellets and other free-flowing pet food products.

Conclusion

Dog food packaging is a specialized process that requires the right equipment combination. A dog food packaging machine should not only fill bags but also protect product quality, improve efficiency, and support your brand image. Whether you choose a pre-made pouch system or VFFS packaging, the decision should be based on package weight, bag design, production capacity, and budget.

For many manufacturers, the vertical form fill seal machine is the most cost-effective and scalable option. When paired with a multi-head weigher and a Z-type bucket elevator, it becomes a highly efficient solution for modern pet food production.

If you are planning to start or upgrade a dog food bagging production line, the best approach is to work with a professional supplier that can recommend the right machine based on your exact product and output needs.
